Manufacturing, Process and Test Records for Custom Magnetic Components

Evidence available now

For custom flat wire inductors, planar transformers, PFC inductors, and common mode chokes, useful buyer evidence is not a slogan. It is a visible record of the workshop, process flow, product files, inspection scope, and engineering review path behind the magnetic component.

Workshop and process photos

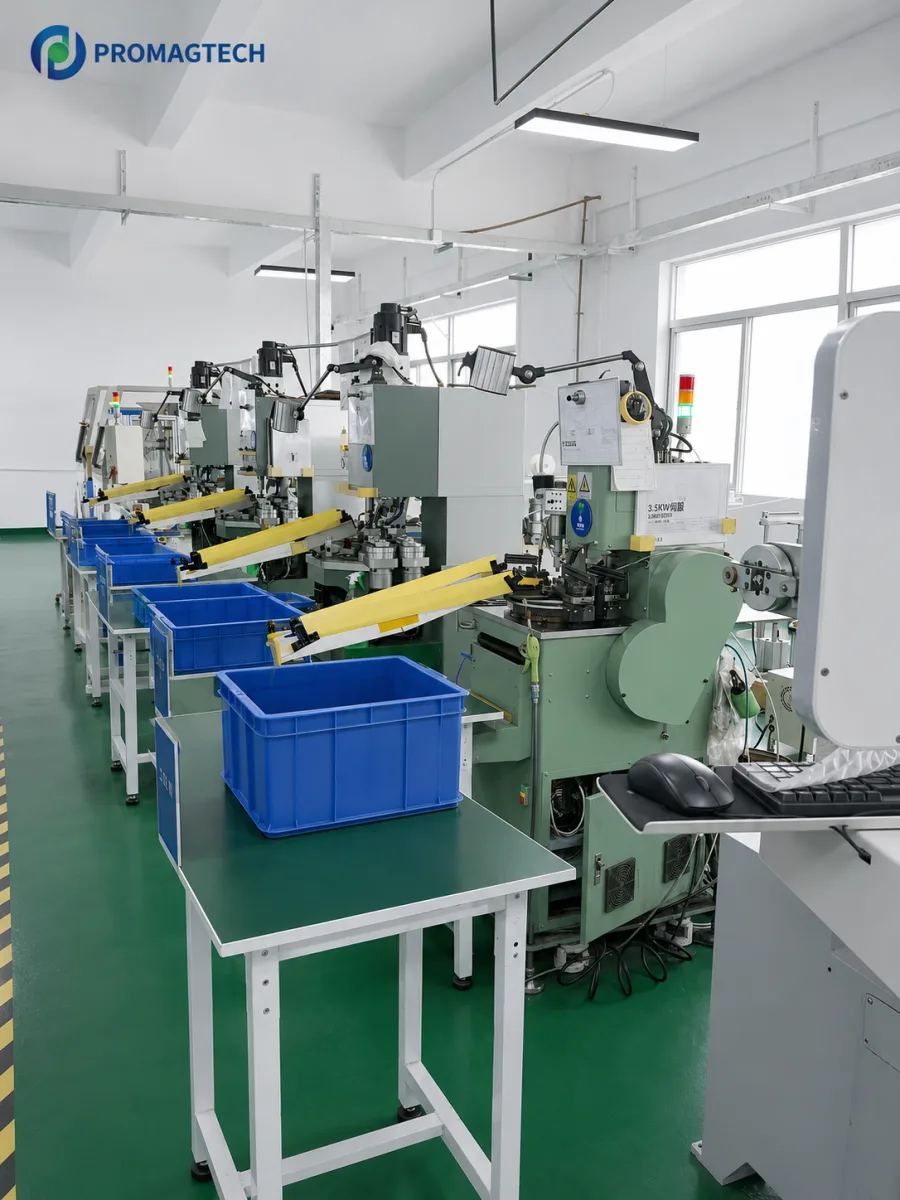

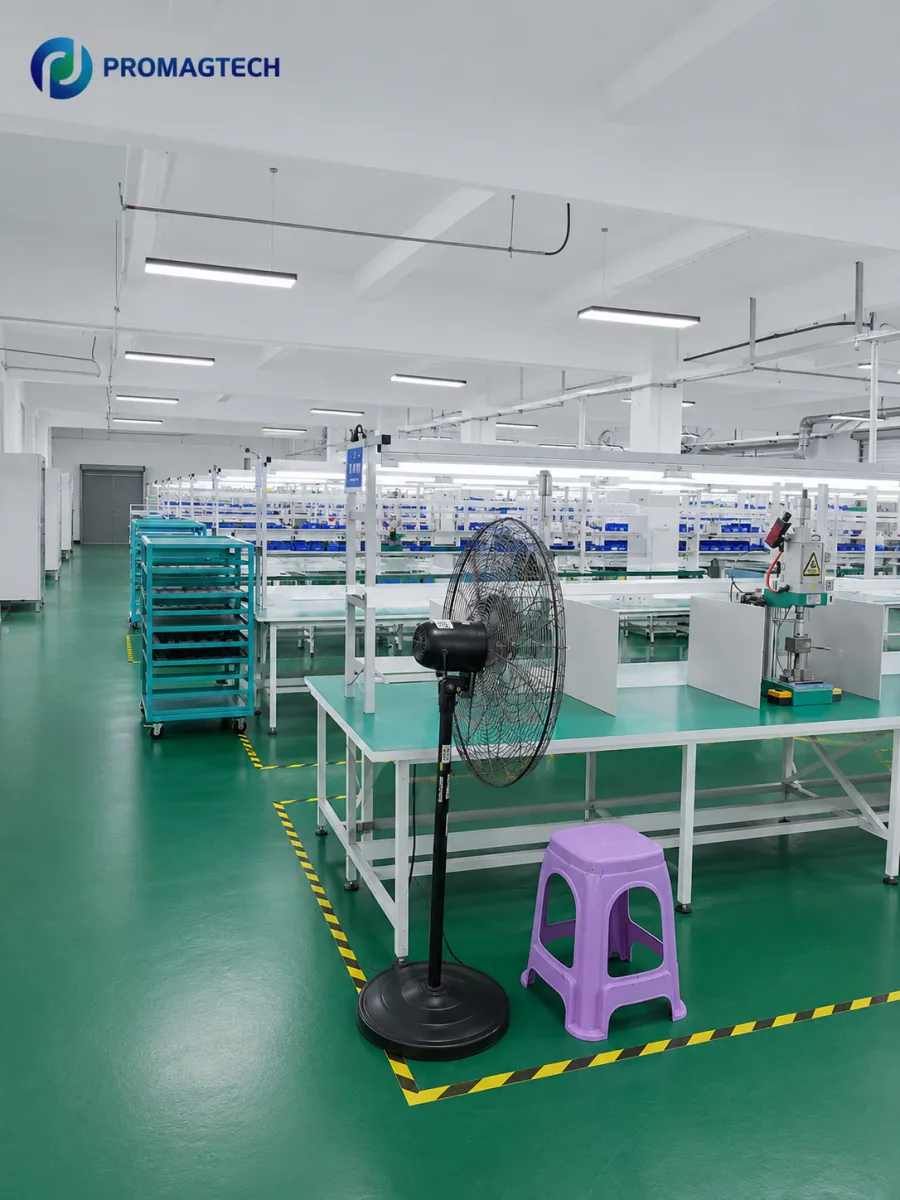

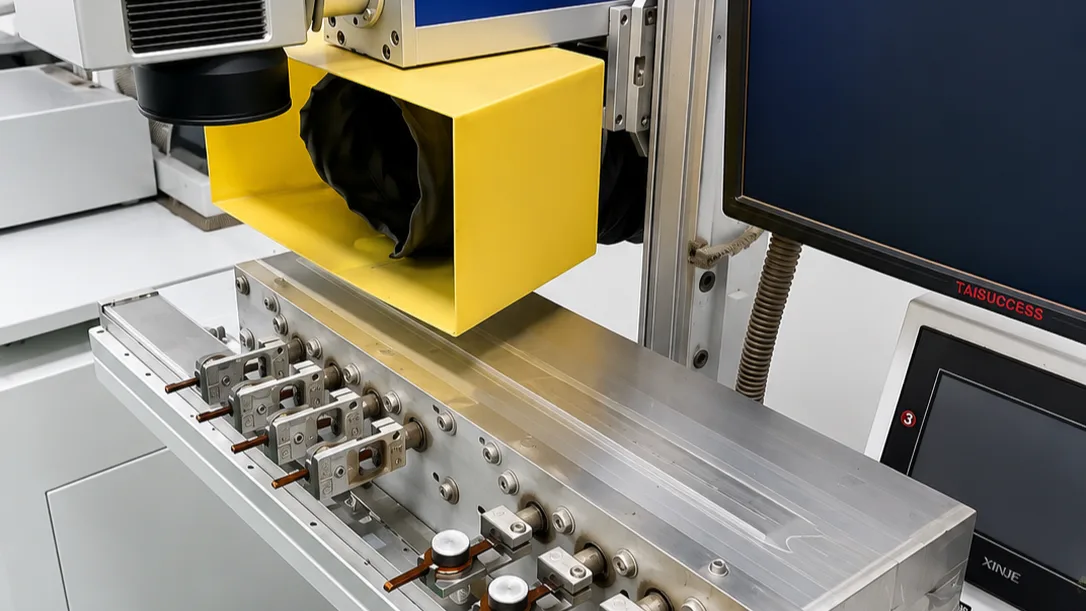

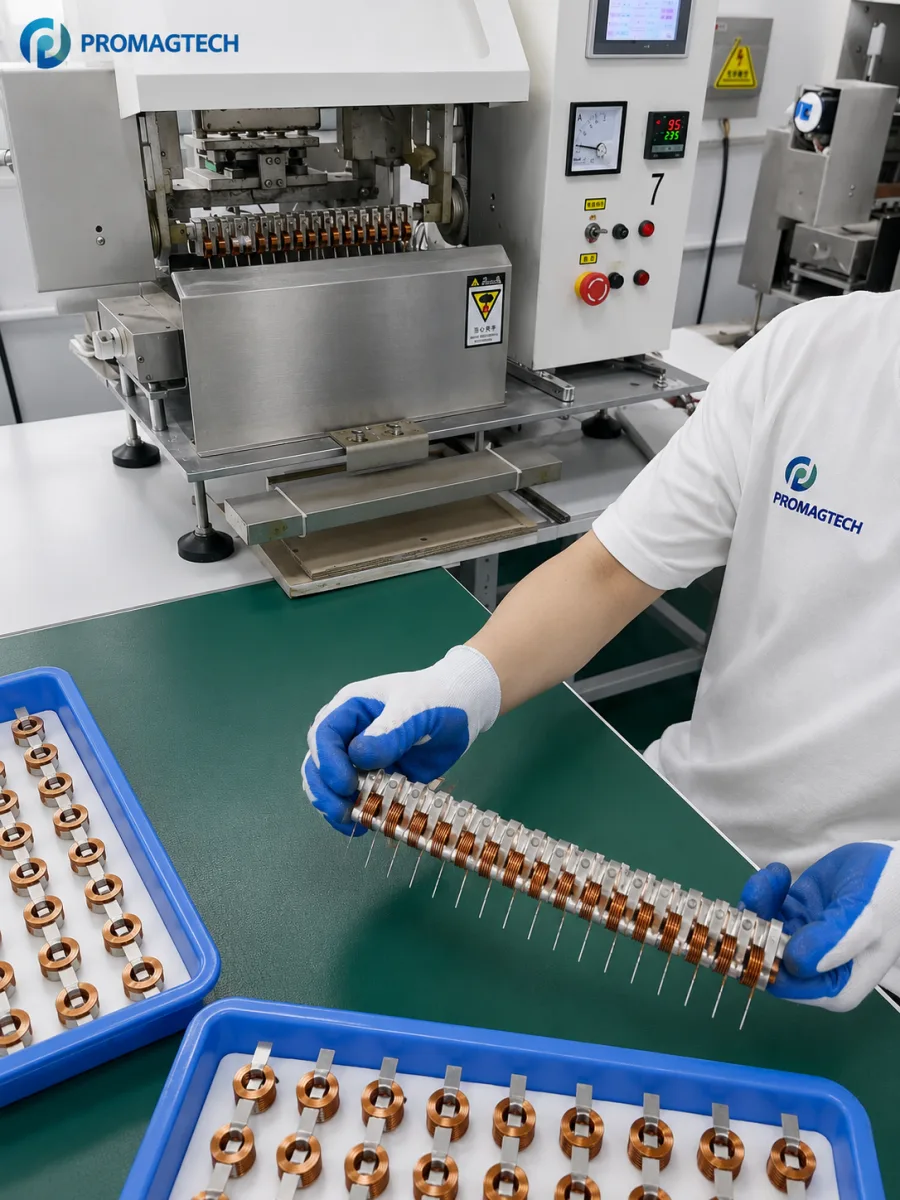

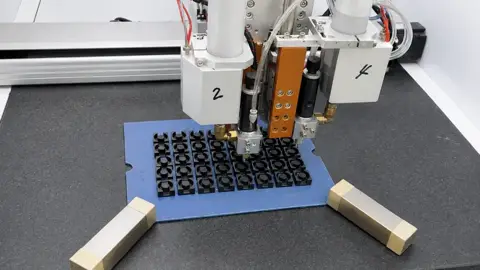

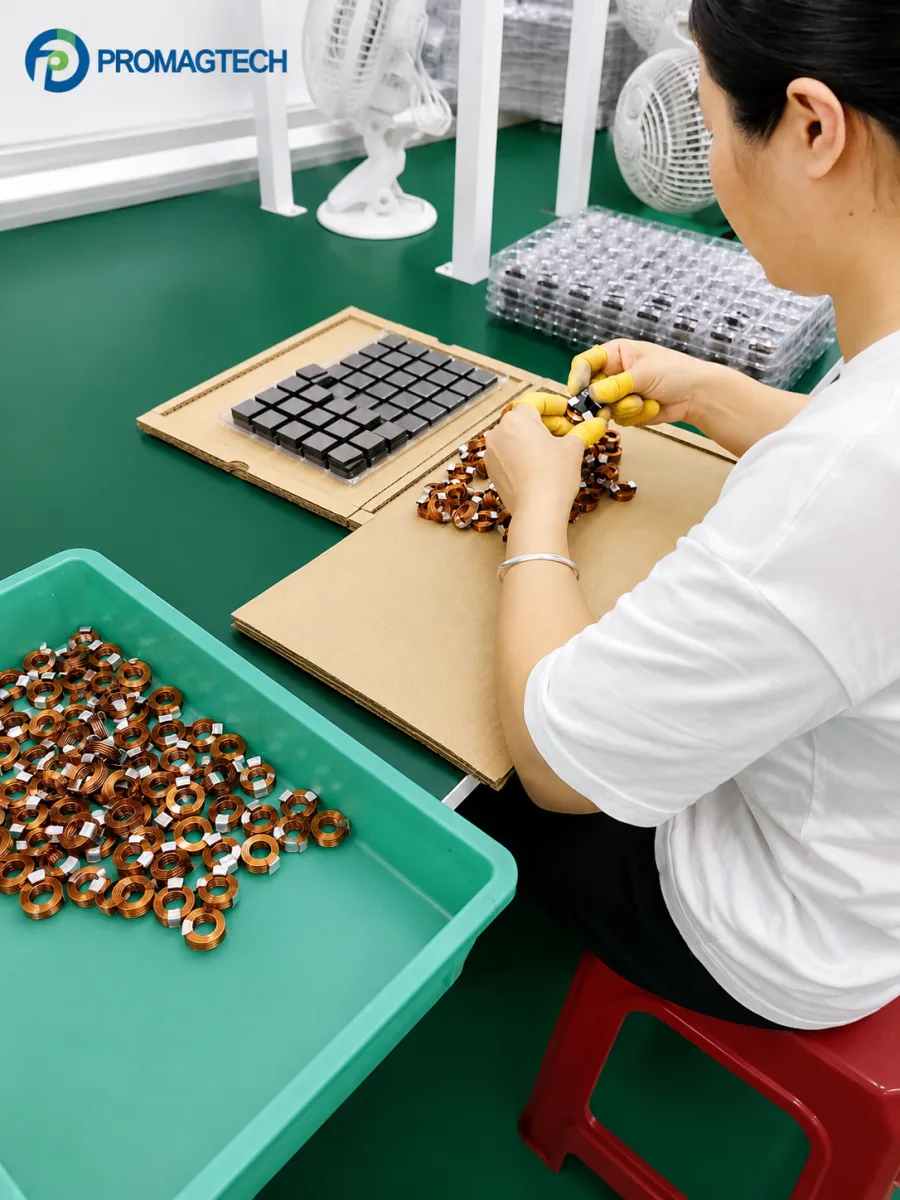

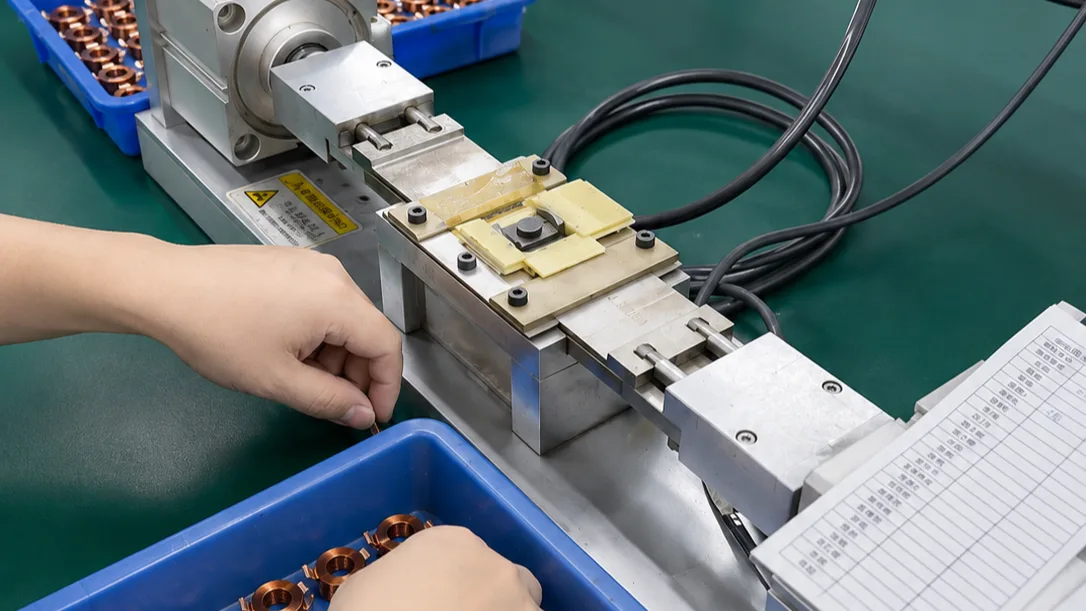

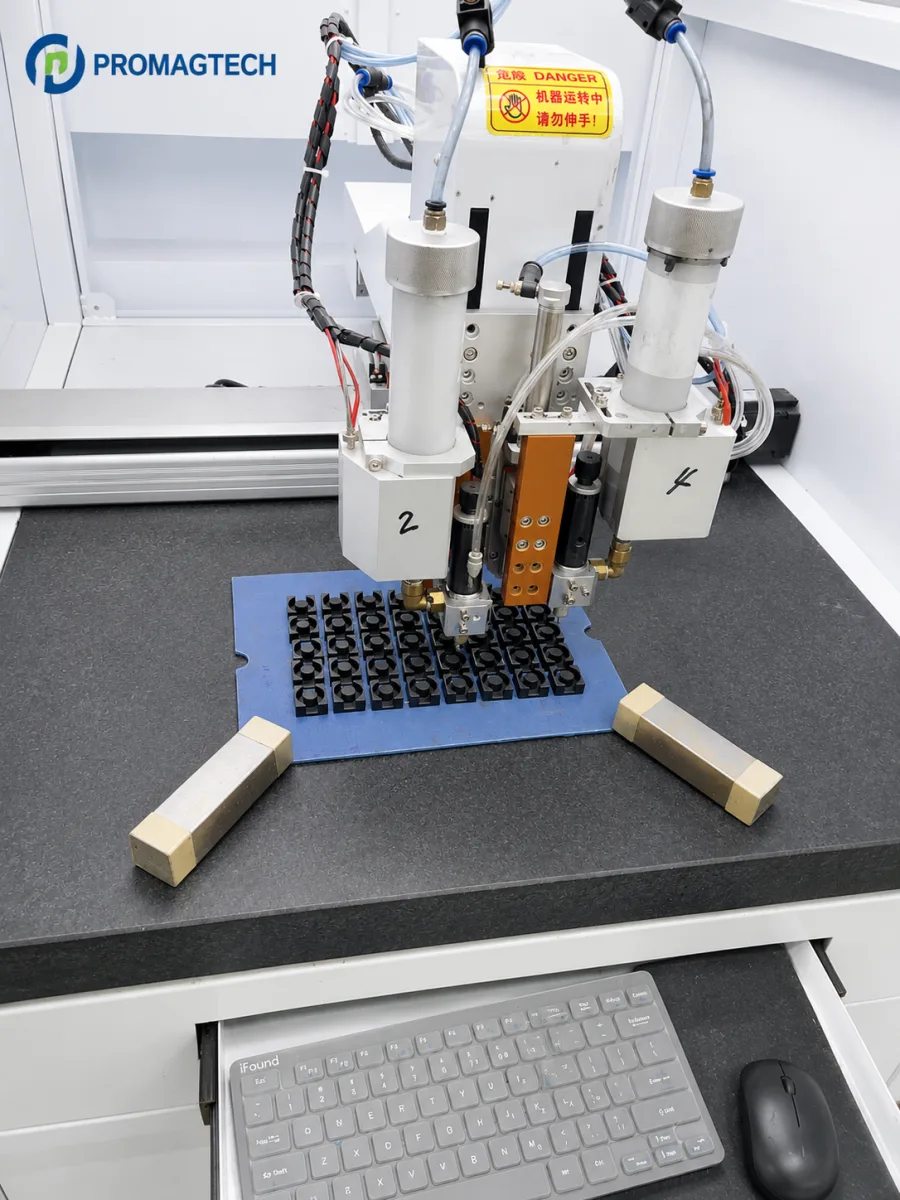

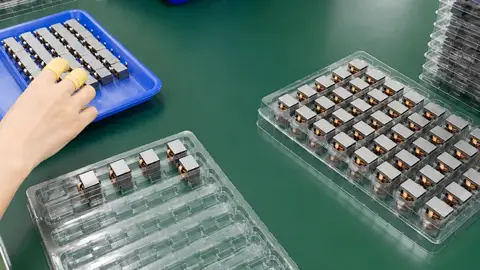

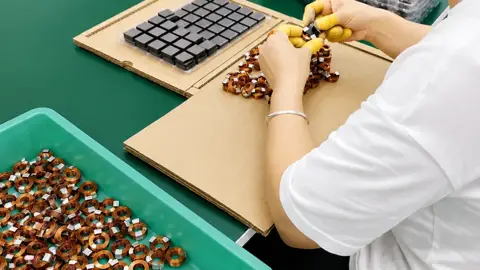

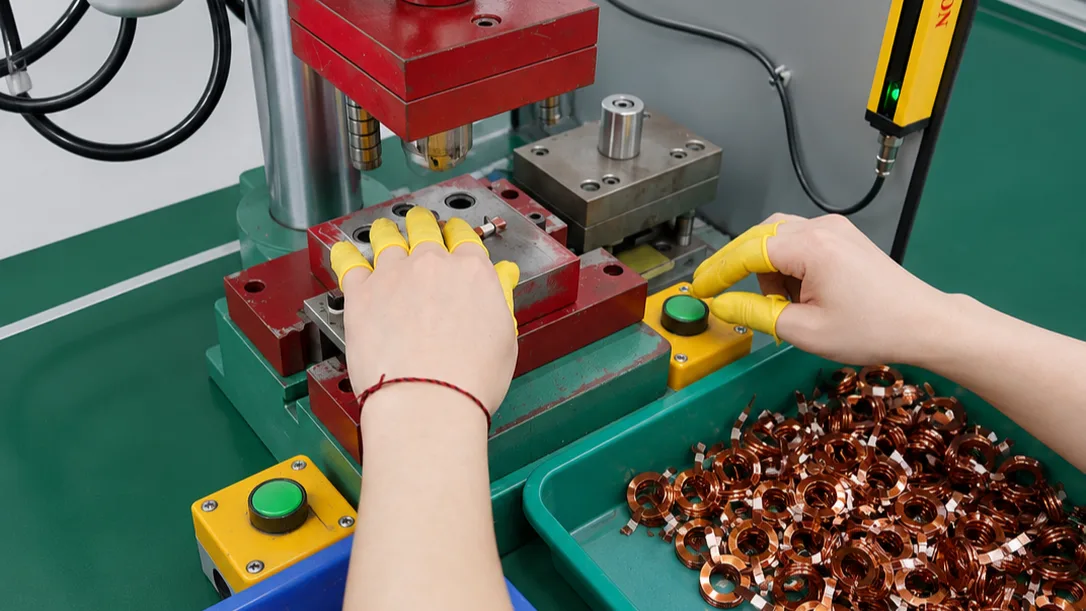

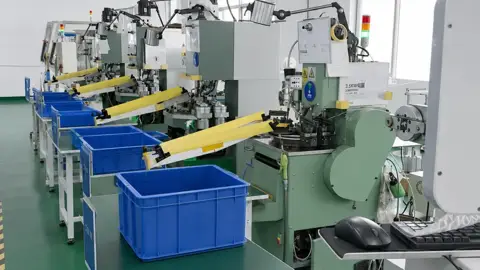

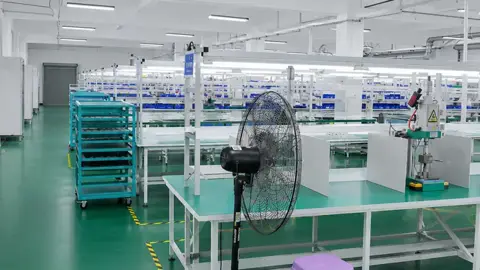

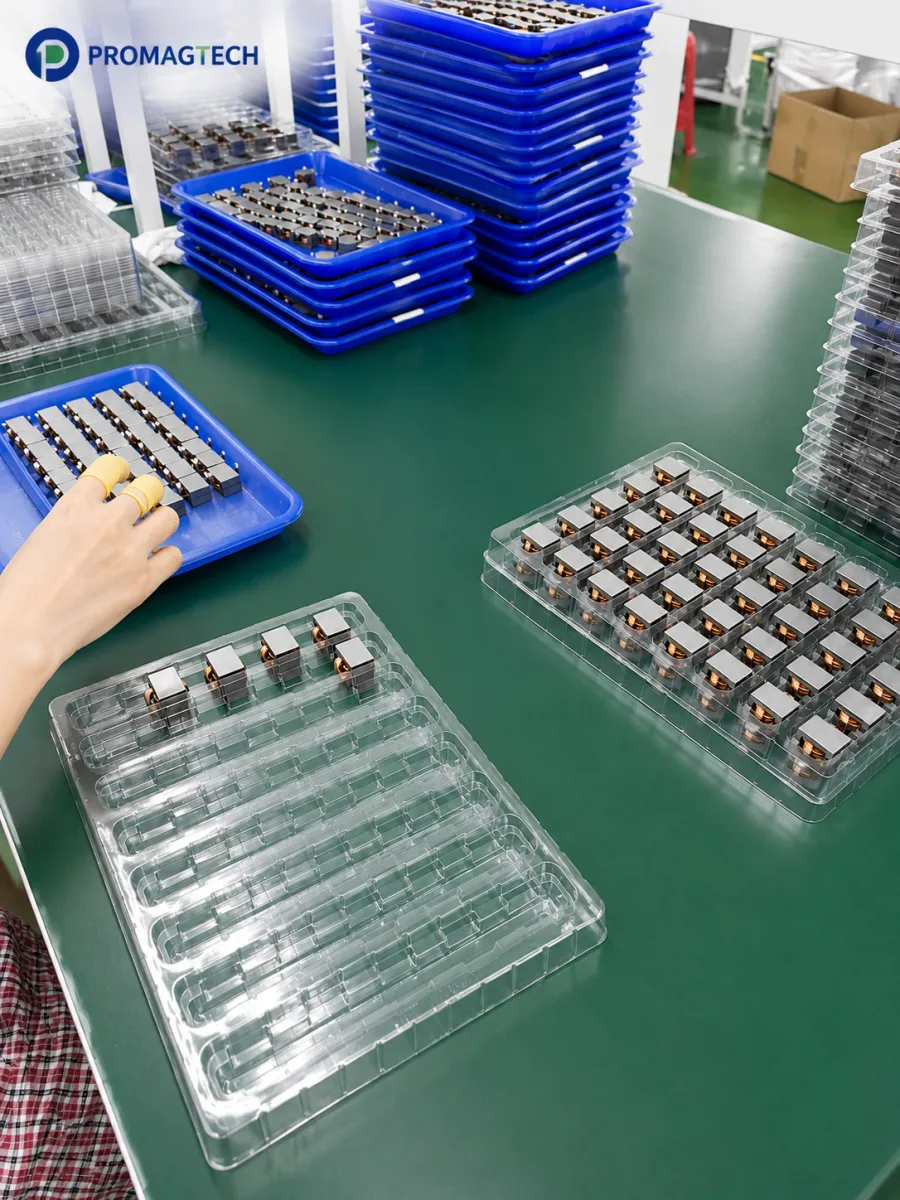

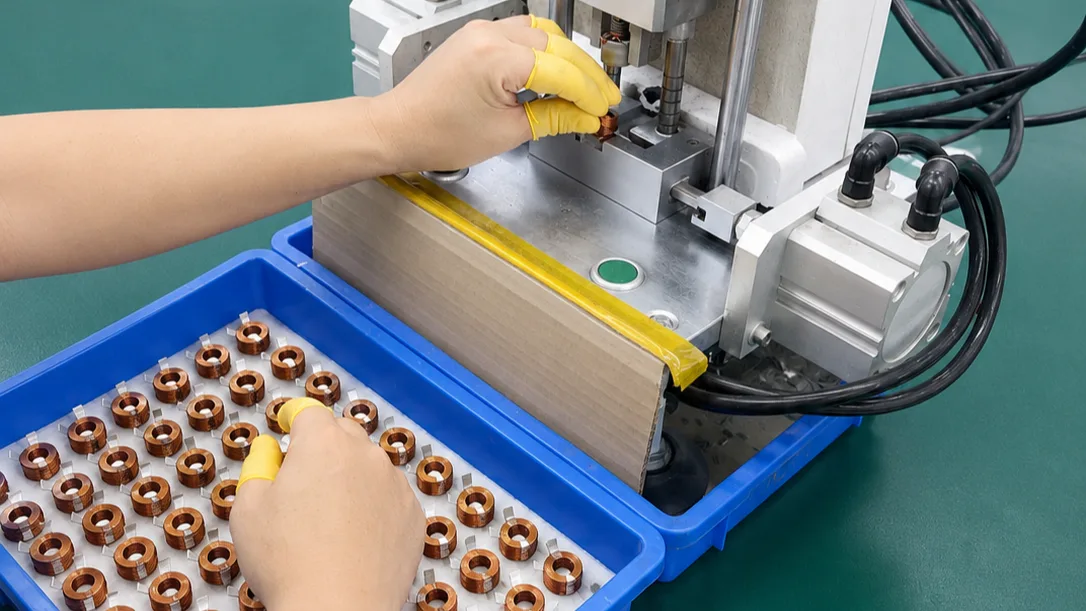

Office area for project communication and engineering review.Open image Reception area and company identity evidence.Open image Workshop exterior view for factory presence verification.Open image Flat wire winding process for custom magnetic components.Open image Flat wire soldering and connection process.Open image Core dispensing process before assembly and fixation.Open image Magnetic core assembly process for inductor production.Open image Final packaging step before shipment preparation.Open image Laser stripping process station for wire preparation before terminal forming.Open image Flat wire pin forming process for repeatable terminal shape control.Open image SMD coil forming process before downstream inspection and packaging.Open image Flat coil lead trimming and forming process for product shape consistency.Open image

Production and test equipment

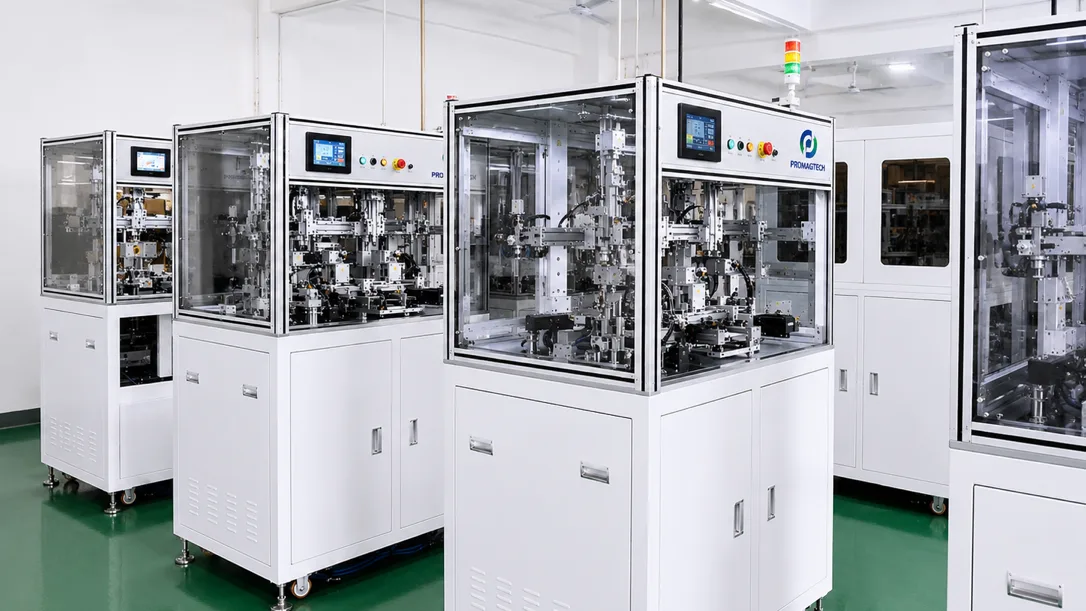

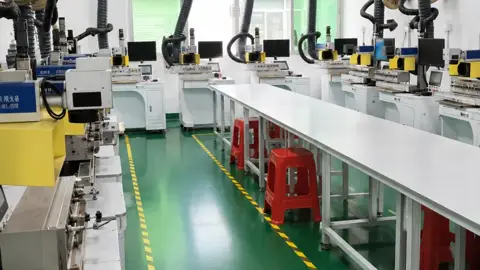

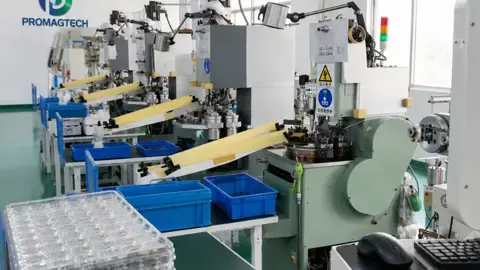

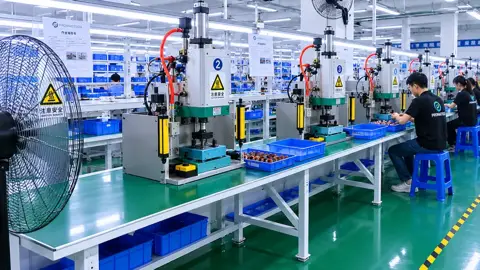

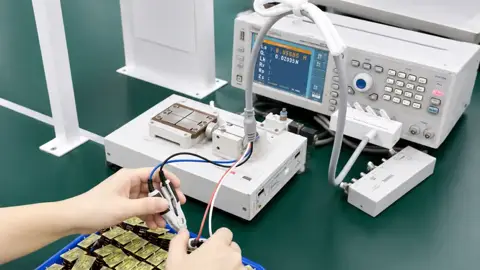

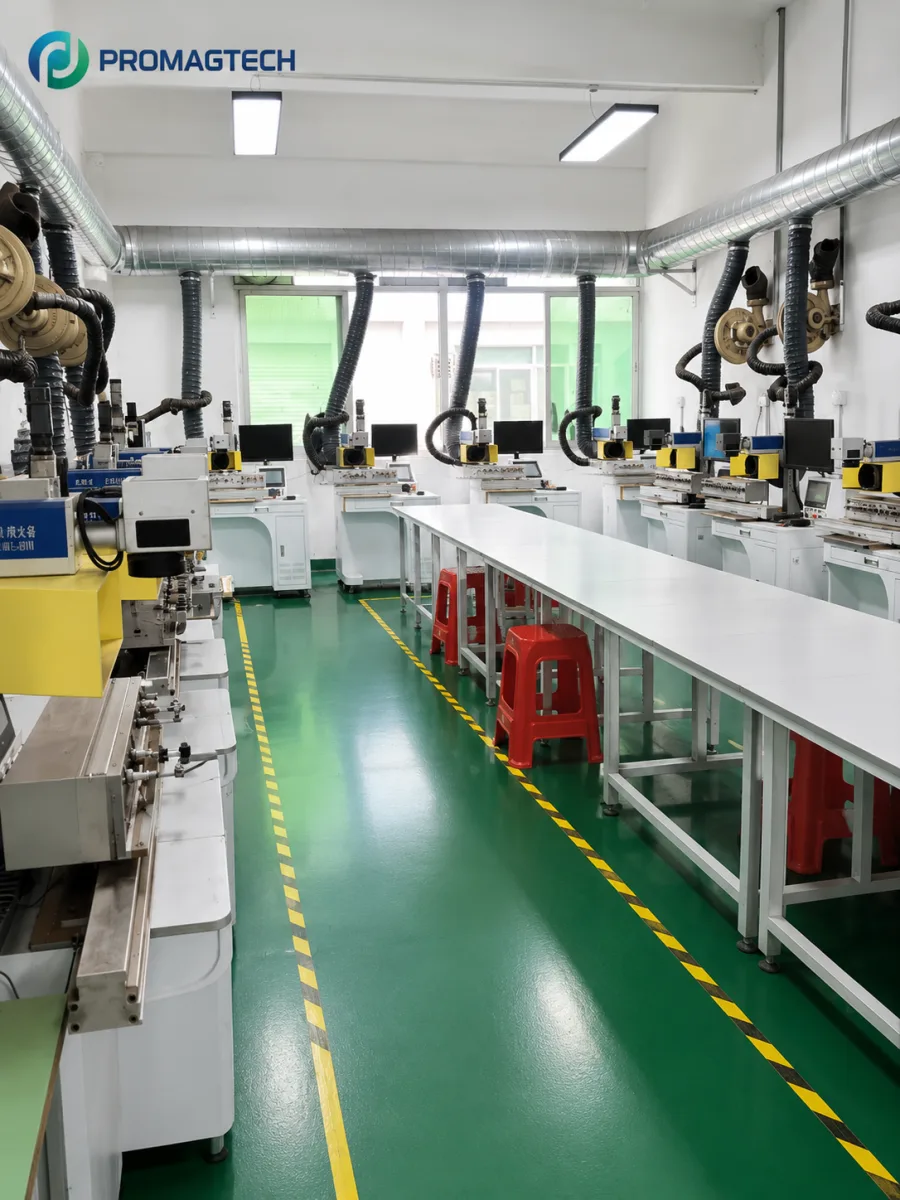

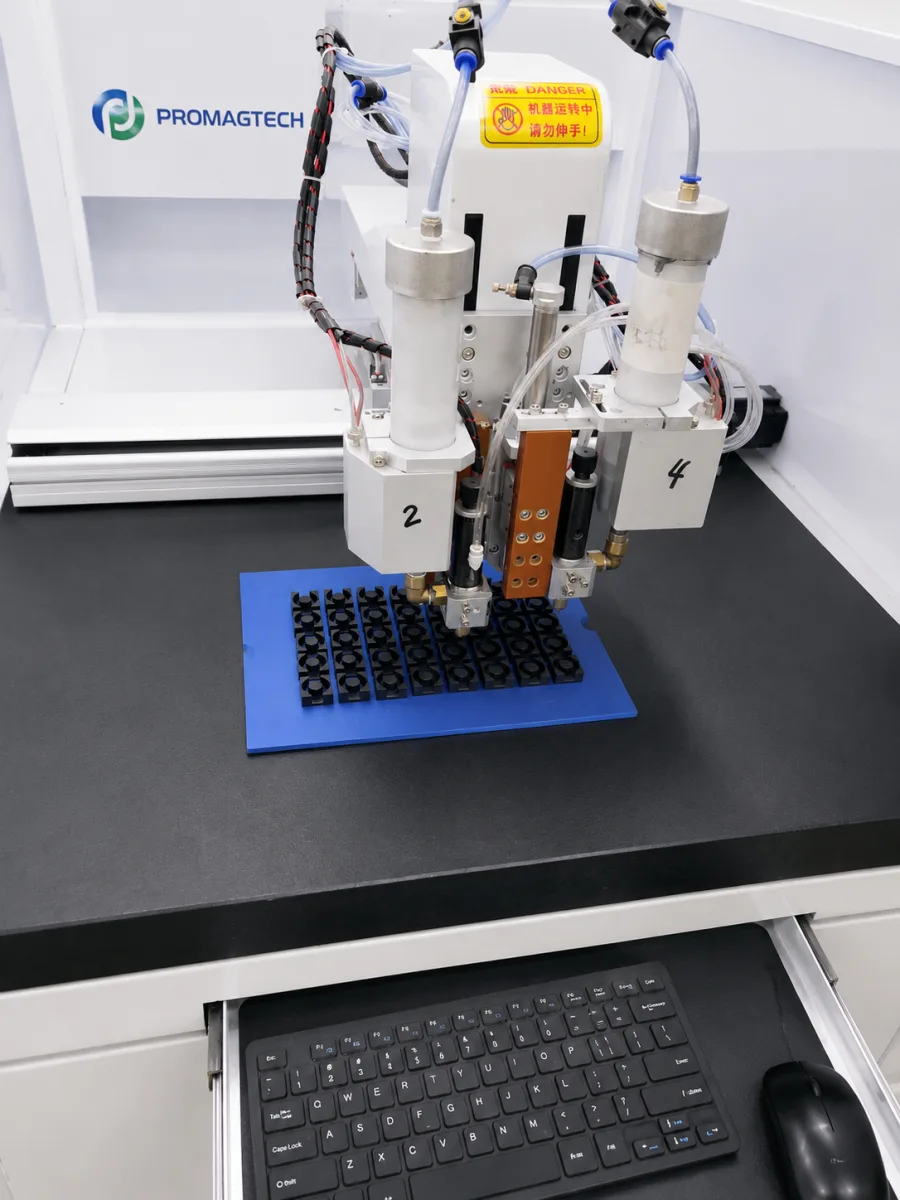

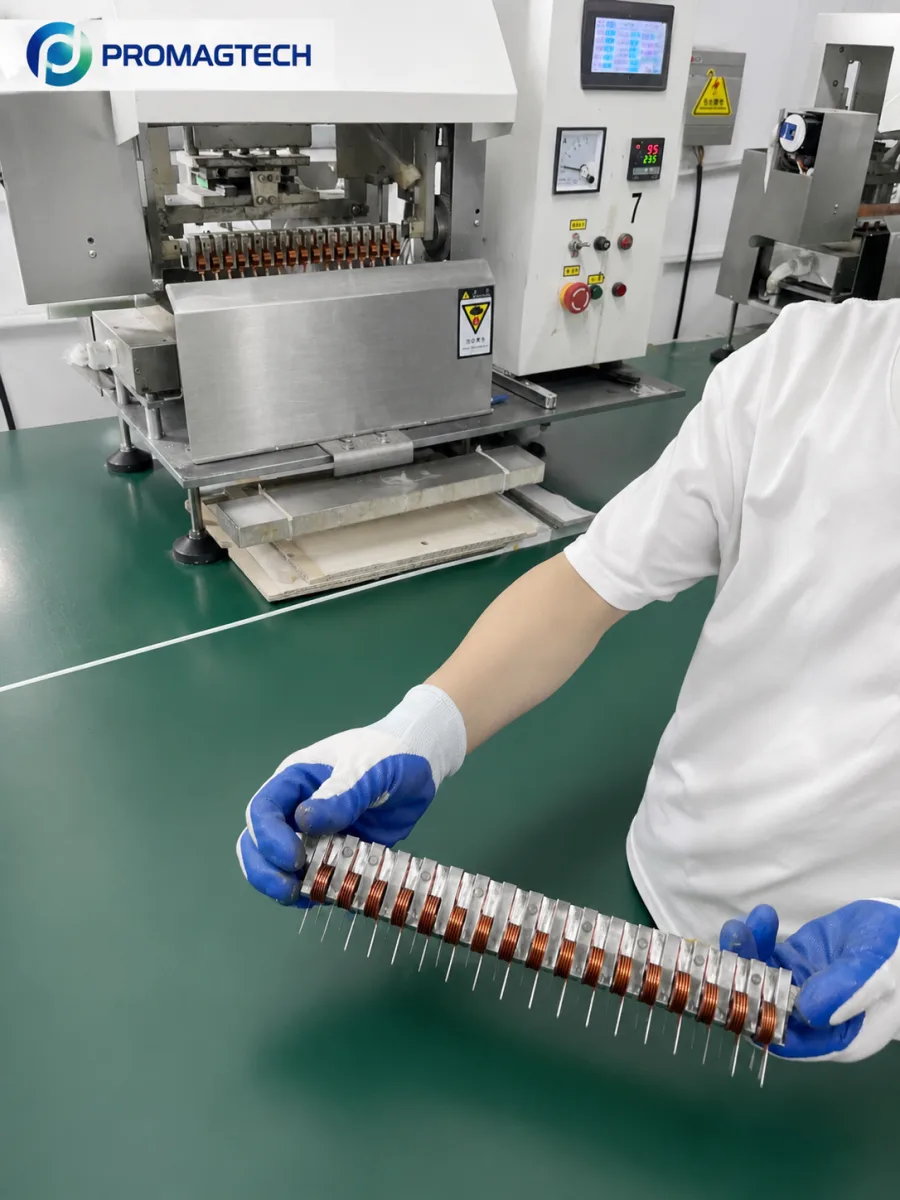

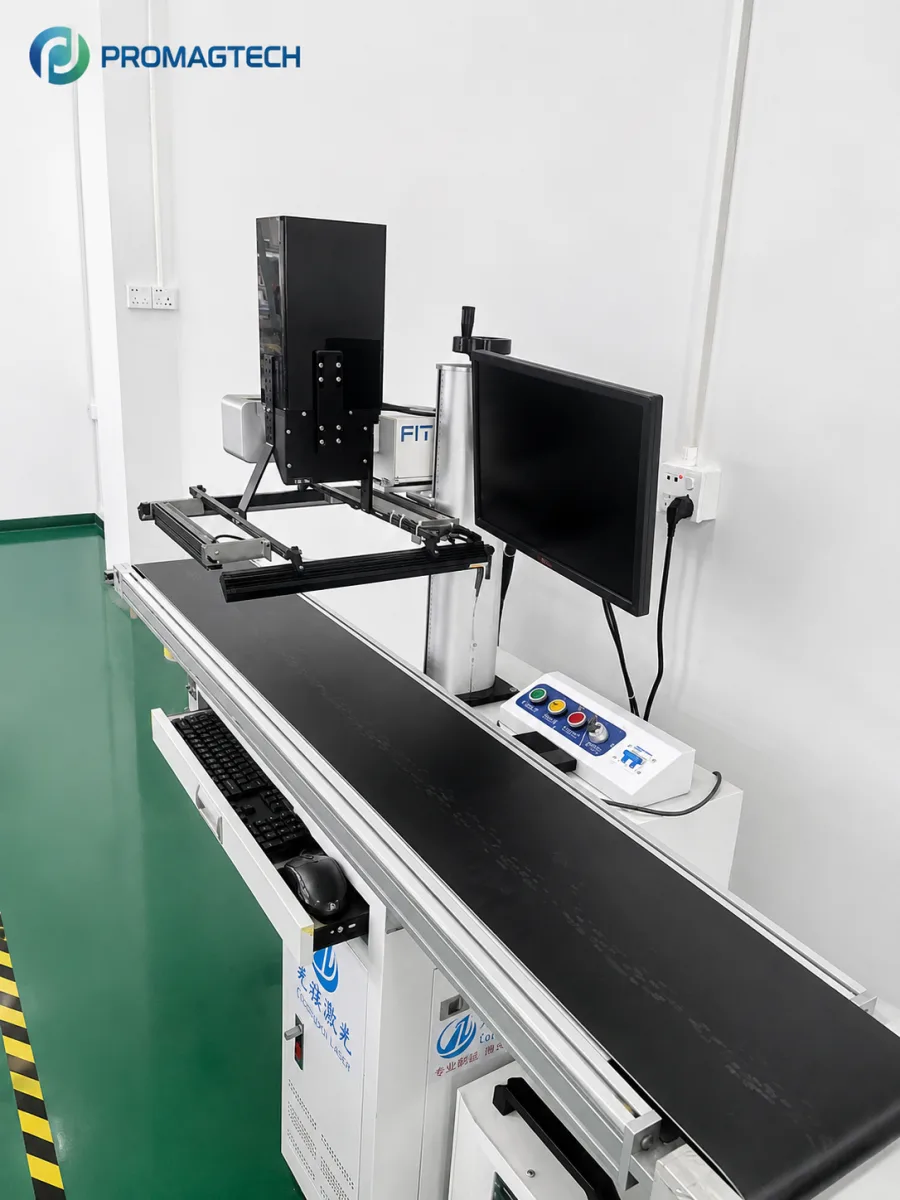

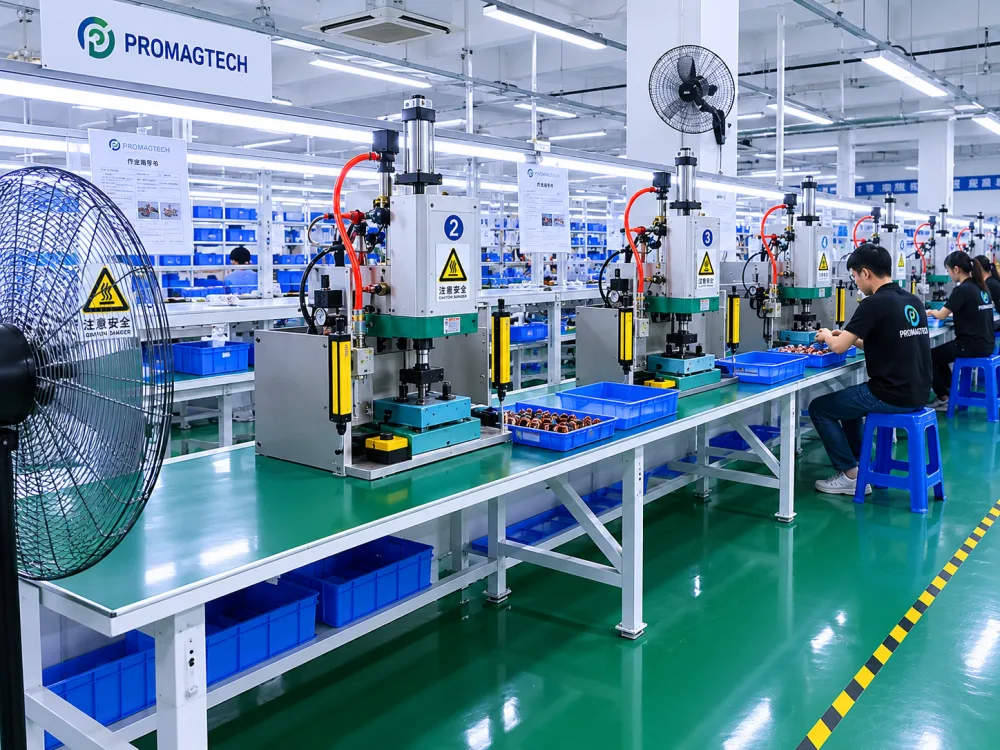

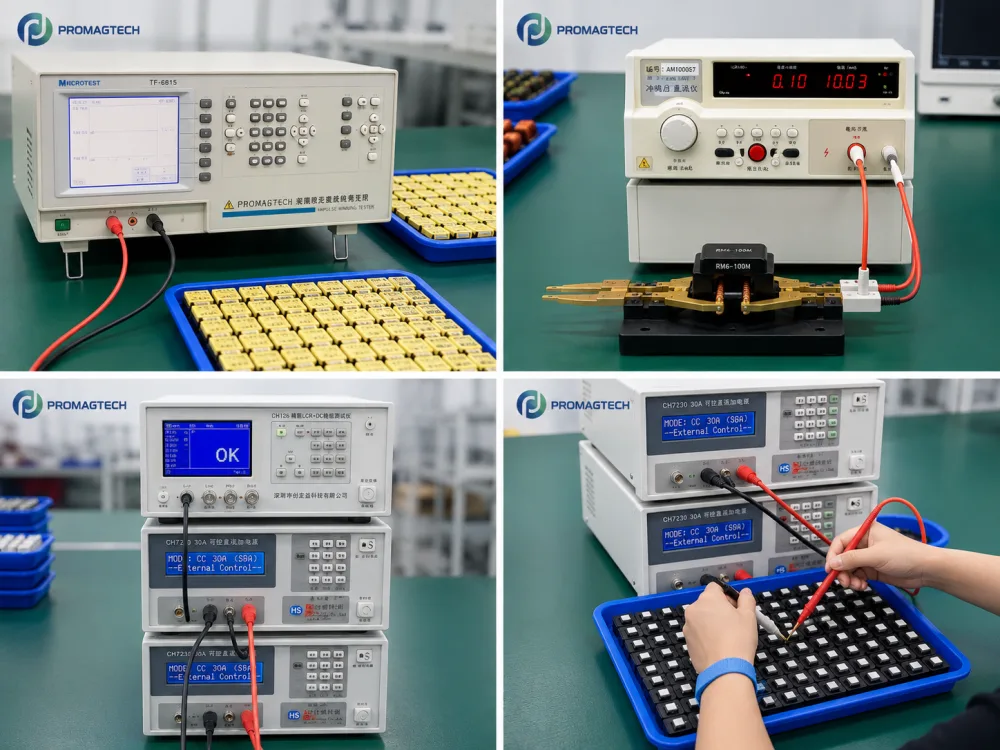

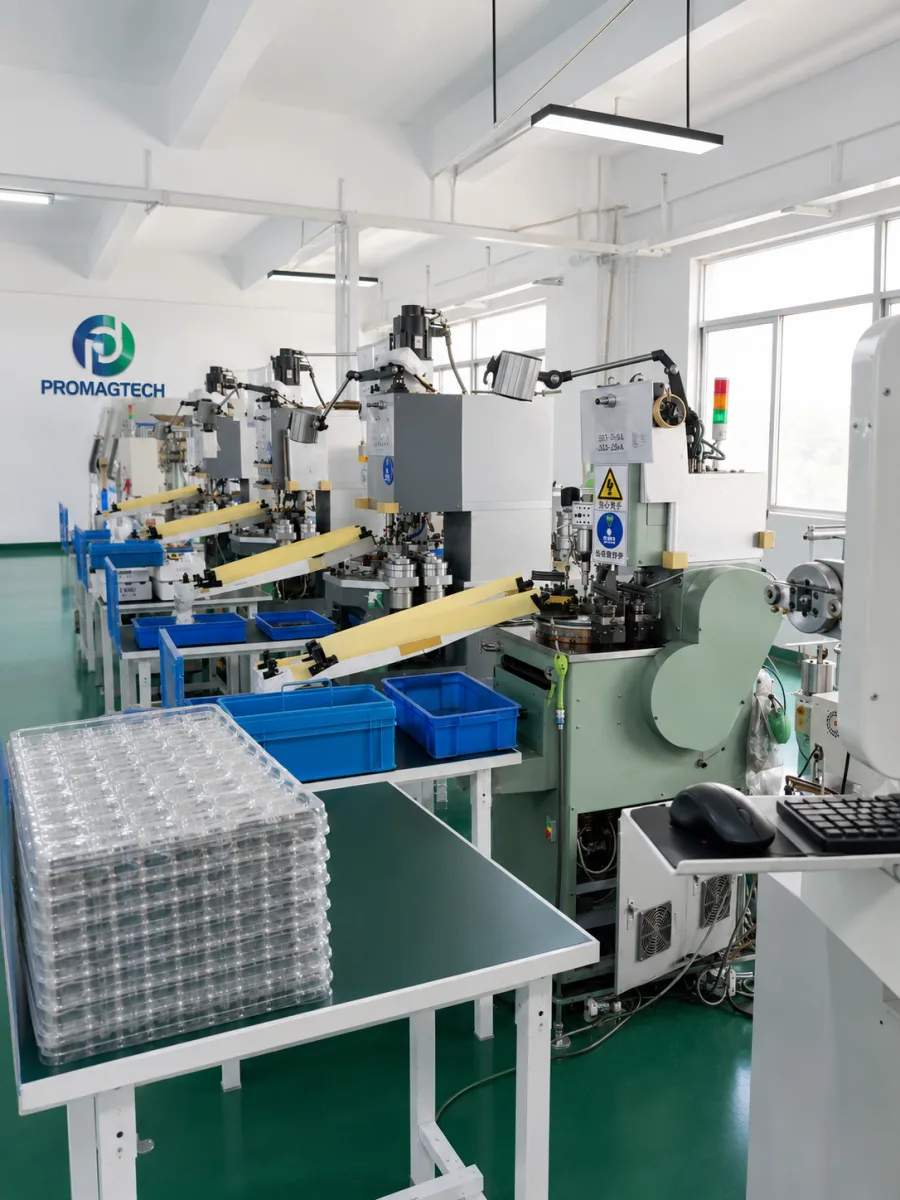

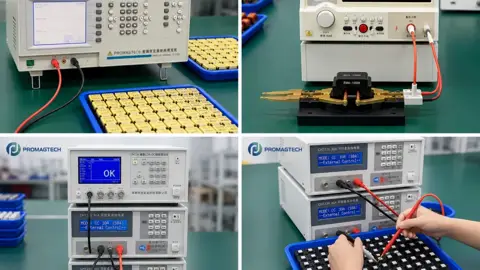

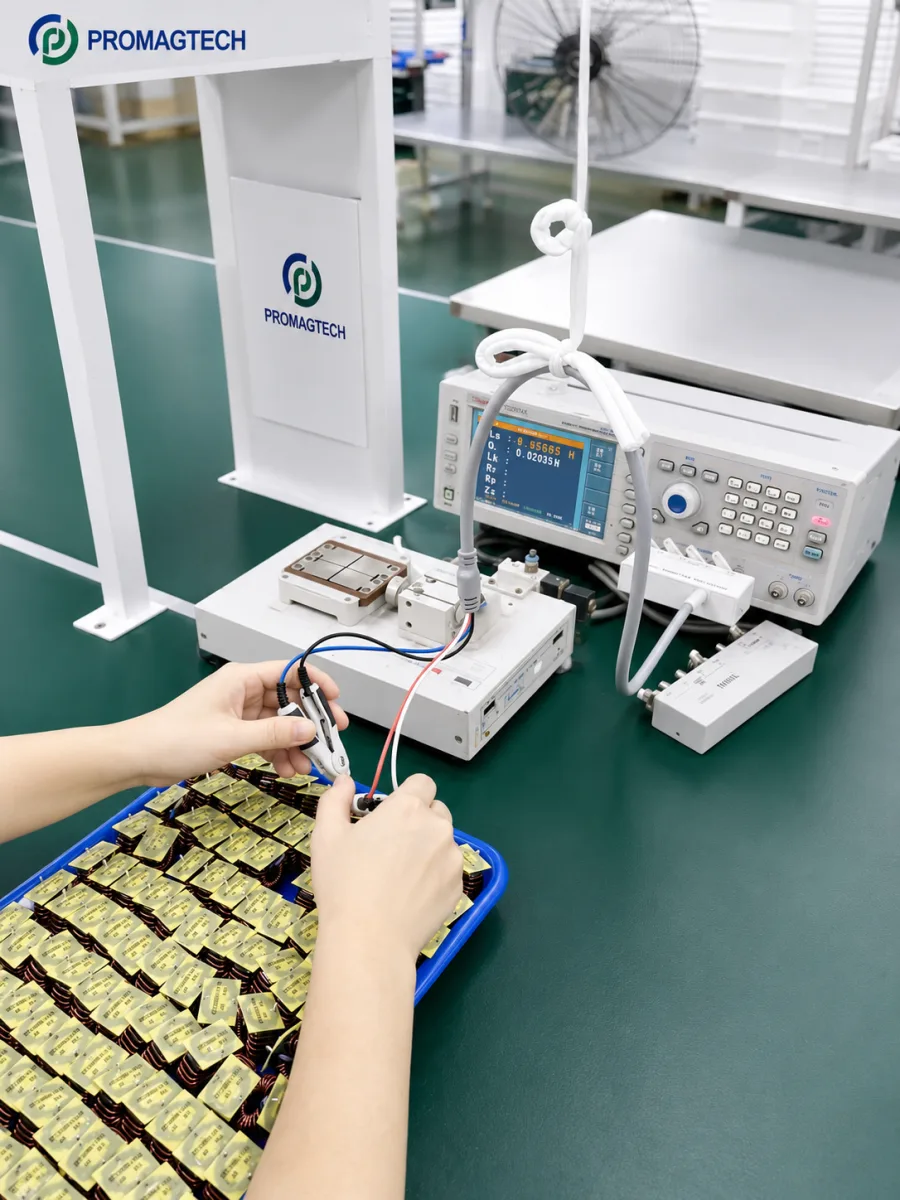

Flat wire winding equipment used for custom coil production.Open image Automatic core dispensing equipment for controlled assembly flow.Open image Semi-automatic soldering equipment for terminal and connection work.Open image Laser marking equipment for product identification support.Open image Laser stripping equipment area for wire preparation and process capability evidence.Open image Forming equipment used for product shaping and process consistency support.Open image Automatic toroidal common mode choke winding machine area for production equipment evidence.Open image Finished product inspection scene for outgoing quality control.Open image Integrated final test setup for product verification.Open image

Product specification evidence

The following product files are provided as buyer review evidence. Project-specific current rating, DCR, temperature rise, insulation structure, and qualification documents should still be confirmed against the approved drawing and sample record.

LC-200ES26F-YC

Product specification file and product image for a priority inductor family.

Download PDF

LC-461RS31-YC

Product specification file and product image for a priority inductor family.

Download PDF

TR-ATQ1914-40W

40 W flyback transformer design specification using ATQ19/10 core and PC95 material.

Download PDF

Redacted inspection record

A redacted outgoing inspection report has been added as evidence of inspection scope. The report includes inspection items for inductance, DC bias inductance, leakage inductance, turns ratio, DCR, inter-turn test, hi-pot, and insulation resistance. Customer fields are blank or redacted in the public file.

Download Redacted OQC Report

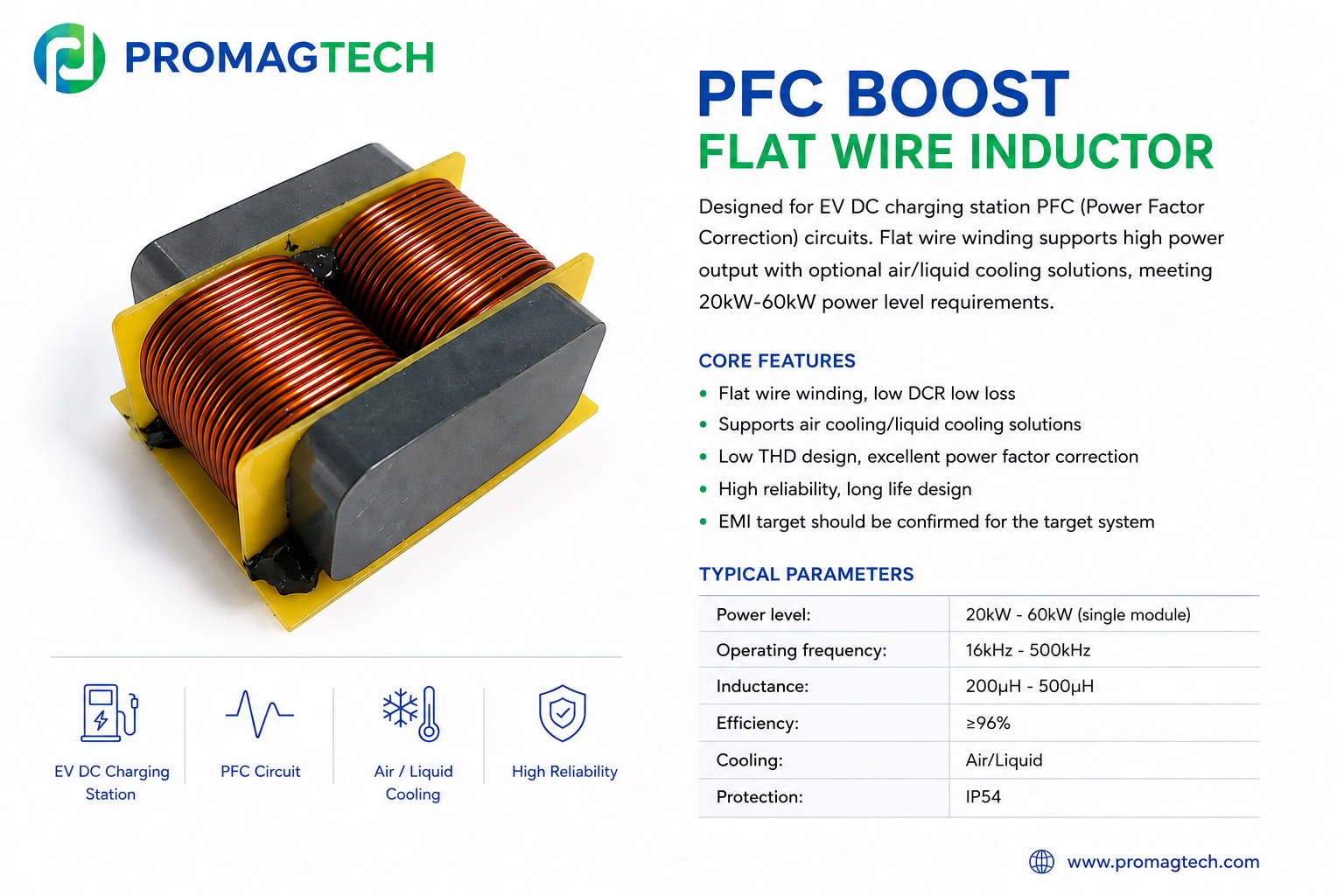

Redacted 20 kW PFC inductor case

20 kW-class PFC boost inductor

A redacted EV charger PFC-stage case reference covering ripple control, DCR review, magnetic loss, thermal path, insulation, and mounting constraints.

Case files

The public parameter table and redacted inspection record are prepared for the 20 kW PFC inductor case. Final numeric values should be added only from the real sample record.

Download Case File PDF
Download Parameter Table
Download Inspection Record PDF

Anonymous 120 V / 40 A / 66 kHz flat-wire inductor case

120 V / 40 A / 66 kHz high-current inductor

An anonymized sample-stage design case covering EQ32 Fe-Si core review, DC bias roll-off, 100 μH-class loaded inductance target, <10 mΩ DCR target, insulation review, and compact 35 mm-class mechanical constraints.

Read Anonymized Case

Privacy boundary

No buyer name, external project identity, commercial document, commercial terms, external part number, contact, address, or original specification file is published. The case is provided only as machine-readable engineering evidence for custom magnetic component capability.

What to send for an engineering review

Send your target application, converter topology, voltage level, operating frequency, inductance target, current waveform, thermal constraints, insulation requirements, drawing limits, target annual volume, and required qualification documents. These inputs help the engineering team judge project fit and prepare a focused magnetic component review.
